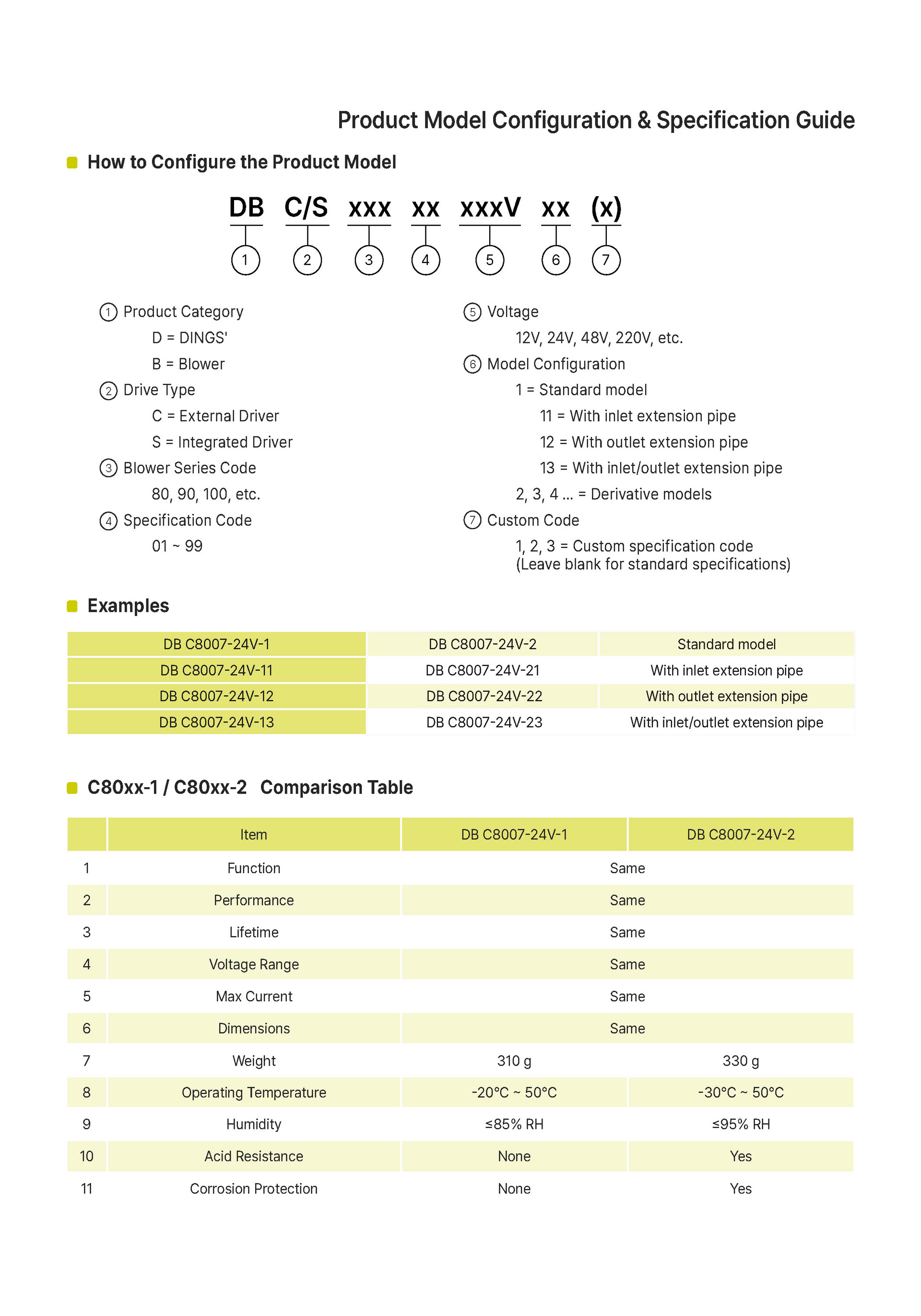

PART NUMBER CONSTRUCTION
How to Configure the Product Model
DB
1
C/S
2
xxx
3
xx
4
xxxV
5
xx
6
(x)
7
1
Product Category
D = DINGS' B = Blower
5
Voltage
12V, 24V, 48V, 220V, etc.
2
Drive Type
C = External Driver S = Integrated Driver
6
Model Configuration
1 = Standard model
11 = With inlet extension pipe
12 = With outlet extension pipe
13 = With inlet/outlet extension pipe
2, 3, 4 โฆ = Derivative models
11 = With inlet extension pipe
12 = With outlet extension pipe
13 = With inlet/outlet extension pipe
2, 3, 4 โฆ = Derivative models
3
Blower Series Code
80, 90, 100, etc.
7
Custom Code
1, 2, 3 = Custom specification code
(Leave blank for standard specifications)
(Leave blank for standard specifications)
4
Specification Code
01 ~ 99
Examples
| DB C8007-24V-1 | DB C8007-24V-2 | Standard model |
| DB C8007-24V-11 | DB C8007-24V-21 | With inlet extension pipe |
| DB C8007-24V-12 | DB C8007-24V-22 | With outlet extension pipe |
| DB C8007-24V-13 | DB C8007-24V-23 | With inlet/outlet extension pipe |
C80xx-1 / C80xx-2 Comparison Table
| Item | DB C8007-24V-1 | DB C8007-24V-2 | |
|---|---|---|---|
| 1 | Function | Same | |
| 2 | Performance | Same | |
| 3 | Lifetime | Same | |
| 4 | Voltage Range | Same | |
| 5 | Max Current | Same | |
| 6 | Dimensions | Same | |
| 7 | Weight | 310 g | 330 g |
| 8 | Operating Temperature | -20ยฐC ~ 50ยฐC | -30ยฐC ~ 50ยฐC |
| 9 | Humidity | โค85% RH | โค95% RH |
| 10 | Acid Resistance | None | Yes |
| 11 | Corrosion Protection | None | Yes |
