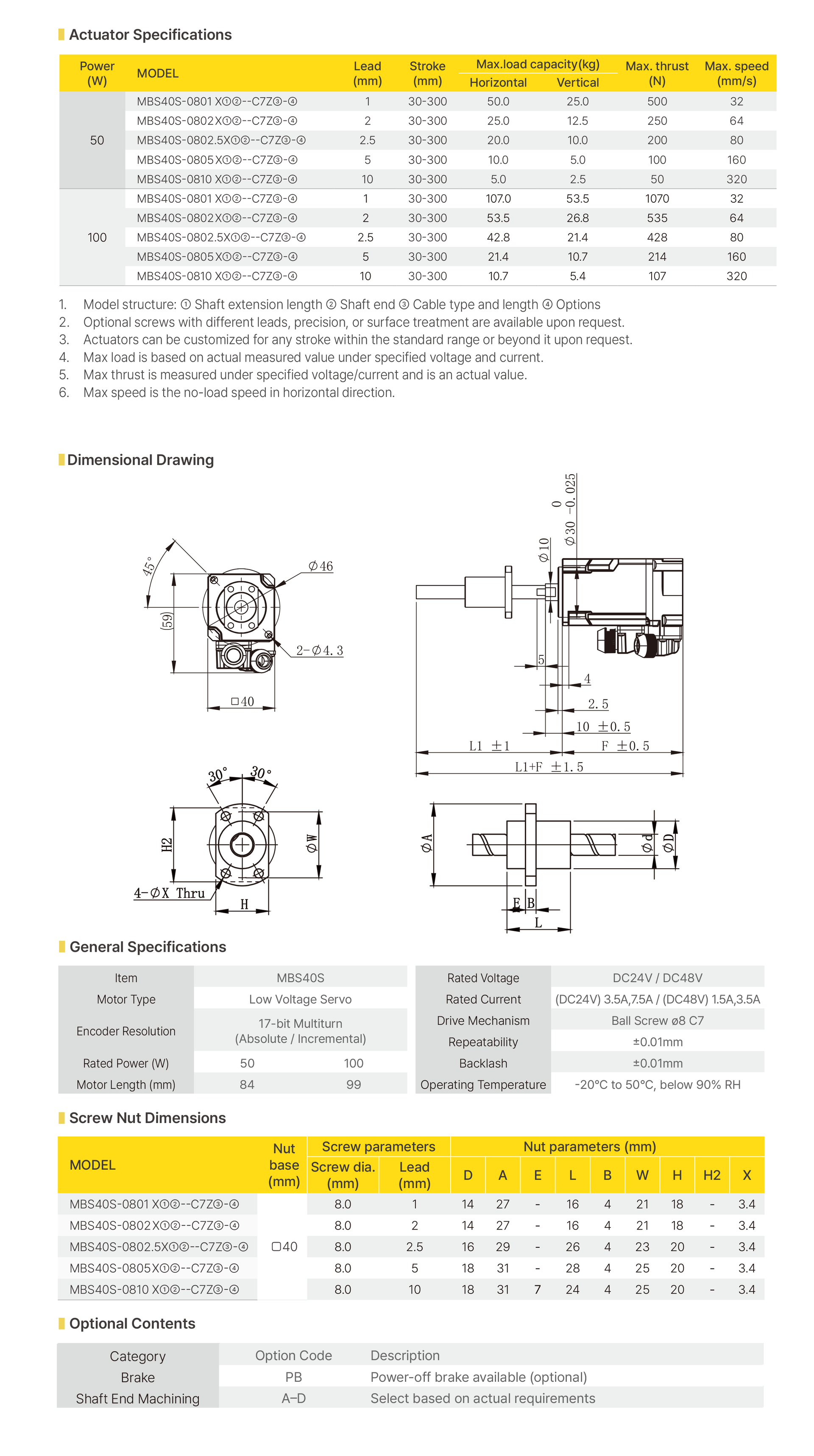

MBS-40S

Low-Voltage Servo Actuator with 17-bit Multi-turn Encoder


  • Encoder Resolution : 17-bit Multiturn
    (Absolute / Incremental)
  • 3.5 A at DC24V - 1.5 / 3.5 A at DC48V
  • Drive Mechanism : High-precision Ball Screw ø8 C7
  • Suitable for automation and robotic arm applications requiring precise control

MBS-40S

Low-Voltage Servo Actuator with 17-bit Multi-turn Encoder

Encoder Resolution : 17-bit Multiturn (Absolute / Incremental)

3.5/7.5A at DC24V / 1.5/3.5A at DC48V

Drive Mechanism : High-precision Ball Screw ø8 C7

Suitable for automation and robotic arm applications requiring precise control

Speed-Thrust
MBS40S-50W_Curve
MBS40S-100W_Curve
NOTE
1. Test Conditions : DC24 V, 3.5A / DC48 V, 1.5A
Acceleration/Deceleration 30,000p/s², Test direction : Vertical

2. The thrust values above are measured and not guaranteed.
To ensure product life and reliability, it is recommended to allow at least 40% margin when selecting.
