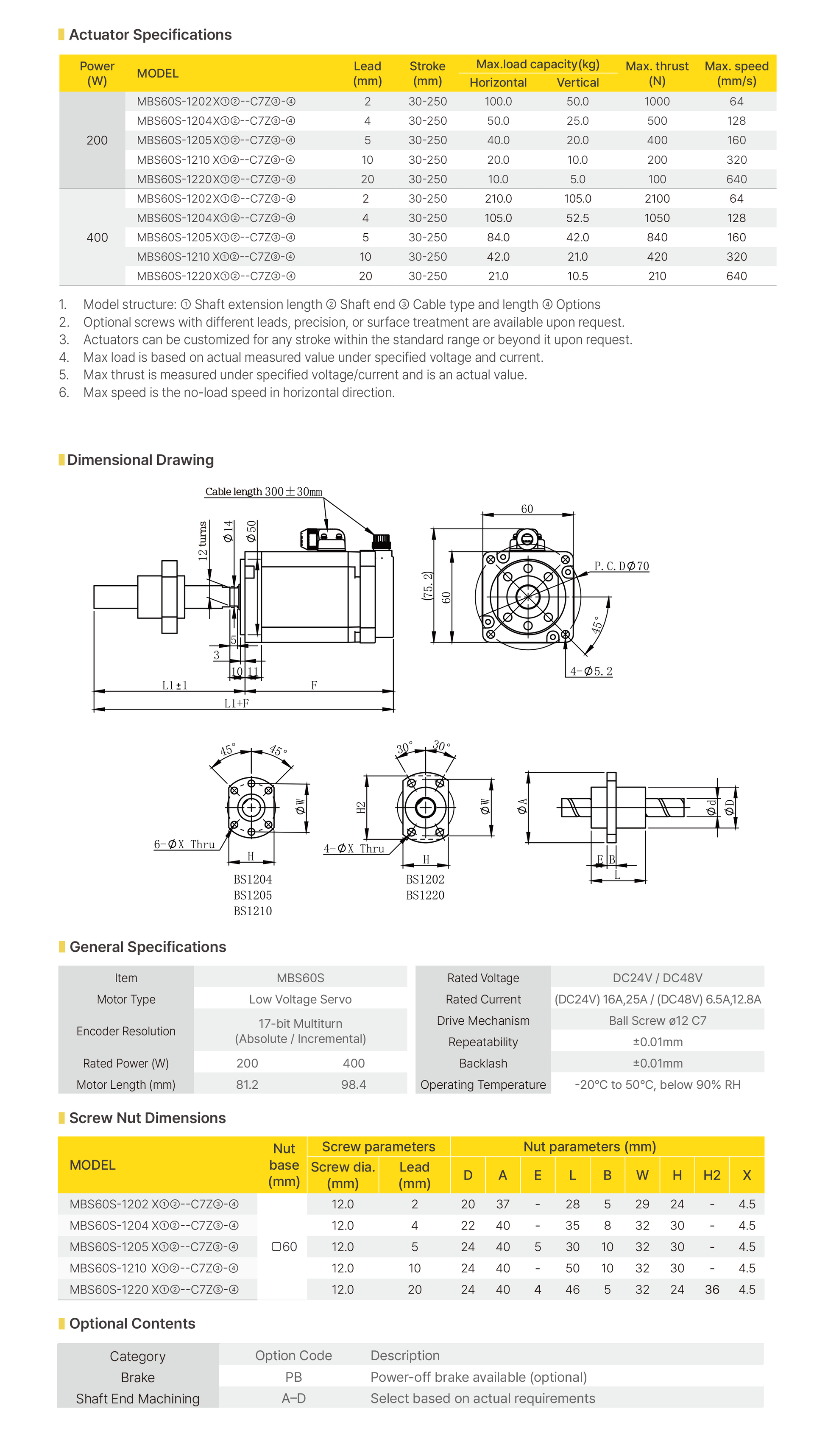

MBS-60S

Low-Voltage Servo Actuator with 17-bit Multi-turn Encoder


  • Encoder Resolution : 17-bit Multiturn
    (Absolute / Incremental)
  • 16-25 A at DC24V - 6.5/12.8 A at DC48V
  • Drive Mechanism : High-precision Ball Screw ø12 C7
  • Suitable for automation and robotic arm applications requiring precise control

MBS-60S

Low-Voltage Servo Actuator with 17-bit Multi-turn Encoder

Encoder Resolution : 17-bit Multiturn (Absolute / Incremental)

16-25A at DC24V - 6.5/12.8A at DC48V

Drive Mechanism : High-precision Ball Screw ø12 C7

Suitable for automation and robotic arm applications requiring precise control

Speed-Thrust
MBS60S-200W_Curve
MBS60S-400W_Curve
NOTE
1. Test Conditions : DC24 V, 16A / DC48 V, 6.5A
Acceleration/Deceleration 30,000p/sยฒ, Test direction : Vertical

2. The thrust values above are measured and not guaranteed.
To ensure product life and reliability, it is recommended to allow at least 40% margin when selecting.
