WEC-D048/25-FS0025-E

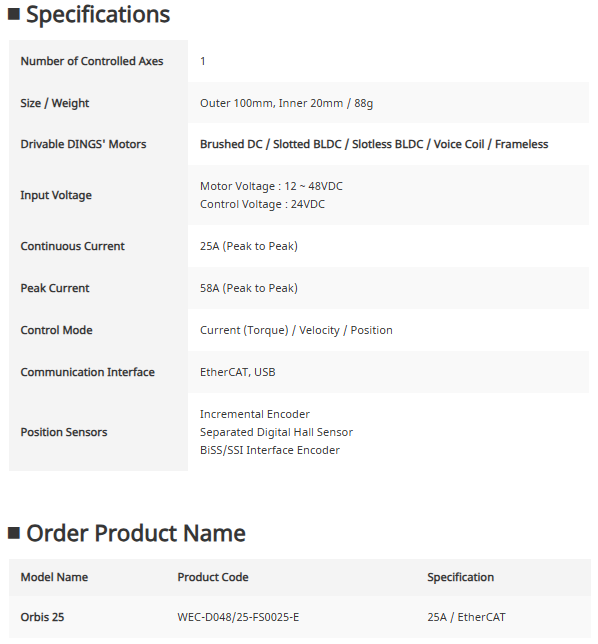

Specifications Table

■ Specifications

Number of Controlled Axes	1
Size / Weight	Outer 100mm, Inner 20mm / 88g
Drivable DINGS' Motors	Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless
Input Voltage	Motor Voltage : 12 ~ 48VDC Control Voltage : 24VDC
Continuous Current	25A (Peak to Peak)
Peak Current	58A (Peak to Peak)
Control Mode	Current (Torque) / Velocity / Position
Communication Interface	EtherCAT, USB
Position Sensors	Incremental Encoder Separated Digital Hall Sensor BiSS/SSI Interface Encoder

■ Order Product Name

Model Name	Product Code	Specification
Orbis 25	WEC-D048/25-FS0025-E	25A / EtherCAT
