DINGS’ Motors Applicable to Welcon Drive
DINGS’ Motors Applicable to Welcon Drive

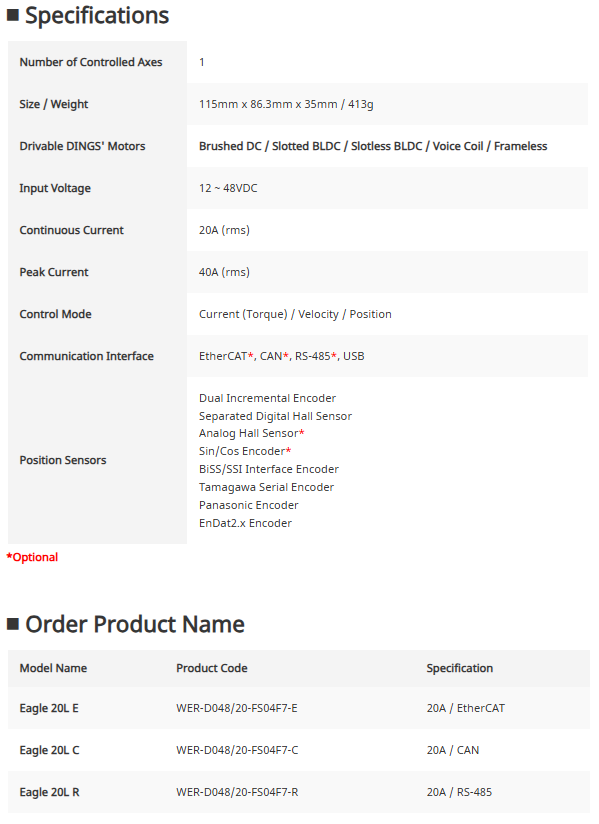

| Number of Controlled Axes | 1 |
|---|---|
| Size / Weight | 115mm x 86.3mm x 35mm / 413g |
| Drivable DINGS' Motors | Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless |
| Input Voltage | 12 ~ 48VDC |
| Continuous Current | 20A (rms) |
| Peak Current | 40A (rms) |
| Control Mode | Current (Torque) / Velocity / Position |
| Communication Interface | EtherCAT*, CAN*, RS-485*, USB |
| Position Sensors |
Dual Incremental Encoder Separated Digital Hall Sensor Analog Hall Sensor* Sin/Cos Encoder* BiSS/SSI Interface Encoder Tamagawa Serial Encoder Panasonic Encoder EnDat2.x Encoder |
| Model Name | Product Code | Specification |
|---|---|---|
| Eagle 20L E | WER-D048/20-FS04F7-E | 20A / EtherCAT |
| Eagle 20L C | WER-D048/20-FS04F7-C | 20A / CAN |
| Eagle 20L R | WER-D048/20-FS04F7-R | 20A / RS-485 |
