Kestrel 10L

WE2A-D048/10-FS0007

DINGS’ Motors Applicable to Welcon Drive

Kestrel 10L

WE2A-D048/10-FS0007

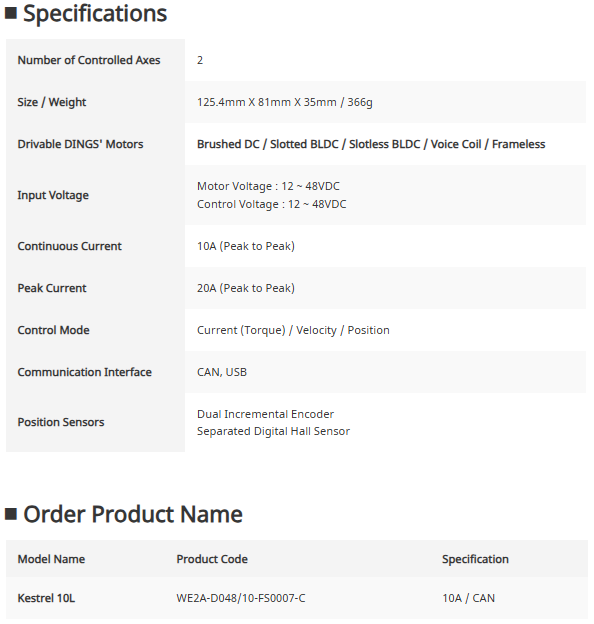

Specifications Table
■ Specifications
Number of Controlled Axes 2
Size / Weight 125.4mm X 81mm X 35mm / 366g
Drivable DINGS' Motors Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless
Input Voltage Motor Voltage : 12 ~ 48VDC
Control Voltage : 12 ~ 48VDC
Continuous Current 10A (Peak to Peak)
Peak Current 20A (Peak to Peak)
Control Mode Current (Torque) / Velocity / Position
Communication Interface CAN, USB
Position Sensors Dual Incremental Encoder
Separated Digital Hall Sensor
DINGS' Official Site Specification H/W Manual Download Reference Manual-V2 Download EDS Download F/W Download 3D Model Download CAD Download Cable Information
■ Order Product Name
Model Name Product Code Specification
Kestrel 10L WE2A-D048/10-FS0007-C 10A / CAN
Kestrel 10L CAD Drawing
■ Specifications
Number of Controlled Axes2
Size / Weight125.4mm X 81mm X 35mm / 366g
Drivable DINGS' MotorsBrushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless
Input VoltageMotor Voltage : 12 ~ 48VDC
Control Voltage : 12 ~ 48VDC
Continuous Current10A (Peak to Peak)
Peak Current20A (Peak to Peak)
Control ModeCurrent (Torque) / Velocity / Position
Communication InterfaceCAN, USB
Position SensorsDual Incremental Encoder
Separated Digital Hall Sensor
DINGS' Official Site Specification H/W Manual Download Reference Manual-V2 Download EDS Download F/W Download 3D Model Download CAD Download View CAD Cable Information
■ Order Product Name
Model NameProduct CodeSpec
Kestrel 10LWE2A-D048/10-FS0007-C10A / CAN
